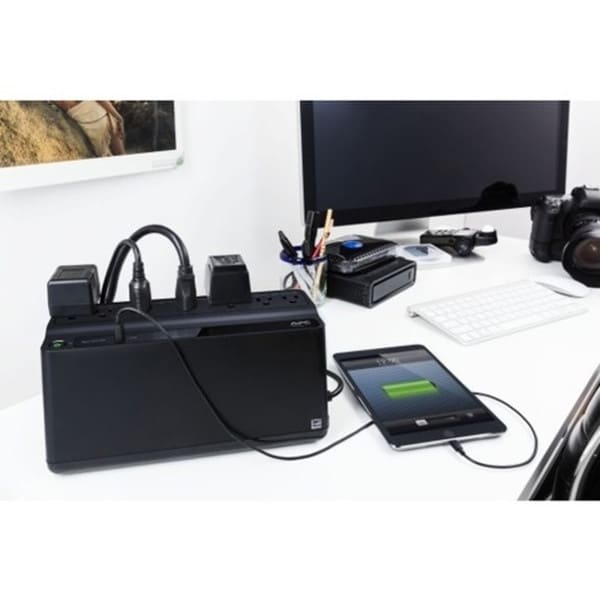

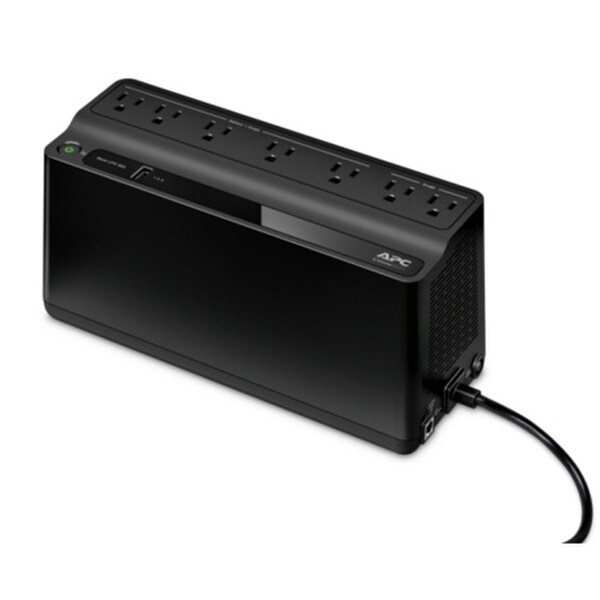

APC Back-UPS 600VA Tower UPS

Battery Backup & Surge Protector for Electronics and Computers

The Back-UPS battery backup offers guaranteed power and surge protection for wireless networks, computers, gaming consoles, and other electronics in your home or business. Models supply battery backup during outages and unsafe voltage fluctuations and provide protection from damaging surges and spikes. They're available in 'tower' or 'floor' styles, and together with a variety of standard features, they are the perfect choice to protect your data and keep you connected.

More from the Manufacturer

Packaged Quantity:   1 Each
Product Type:   Standby UPS

Technical Information

Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Type:   USB
Receptacle Detail:   1 x USB
Receptacle Detail:   7 x NEMA 5-15R
Number of Battery & Surge Outlets:   7
Number of Surge-only Outlets:   2
Transfer Time:   6 ms
Application/Usage:   Cable Box/DVR
Application/Usage:   Computer
Application/Usage:   Electronic
Application/Usage:   Network
Application/Usage:   Wireless Router
Application/Usage:   Gaming Console
Application/Usage:   IOT Device
Application/Usage:   Modem
Application/Usage:   Security System
Application/Usage:   Television
Application/Usage:   Wi-Fi Router

Power Description

Load Capacity:   600 VA/330 W
Input Voltage:   120 V AC
Input Voltage Range:   92 V AC - 139 V AC
Output Voltage:   120 V AC
Input Frequency:   60 Hz
Output Frequency:   60 Hz
Waveform Type:   Stepped Sine Wave
Surge Energy Rating:   490 J

Management

Alarm:   On Battery
Alarm:   Low Battery
Alarm:   Overload

Controls/Indicators

Status Indicators:

LED Status Display:

• On Line
• On Battery
• Replace Battery
• Overload



Battery Information

Battery Characteristics:   Maintenance-free, Sealed, Leak-proof
Battery Chemistry:   Lead Acid
Battery Energy:   237.6 kJ
Backup/Run Time (Full Load):   3.20 Minute
Backup/Run Time (Half Load):   11.80 Minute
Typical Battery Recharge Time:   10 Hour
Hot Swappable:   Yes
Replaceable Battery:   Yes

Environmental Conditions

Maximum Operating Temperature:   104°F (40°C)
Storage Temperature:   5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:   9842.52 ft
Maximum Storage Elevation:   49212.60 ft
Storage Relative Humidity:   0% - 95%
Sound Emission (A-Weighted):   35 dB(A)
Thermal Dissipation:   4.69 W

Physical Characteristics

Height:   5.5"
Width:   10.8"
Depth:   4.1"
Form Factor:   Tower
Weight (Approximate):   7.69 lb

Miscellaneous

Package Contents:

• Back-UPS 600VA Tower UPS
• User manual


• Energy Star:   Yes
  Environmental Certification:   CEC
  Environmental Certification:   REACH
  Environmental Certification:   RoHS

  Warranty

  Limited Warranty:   3 Year
