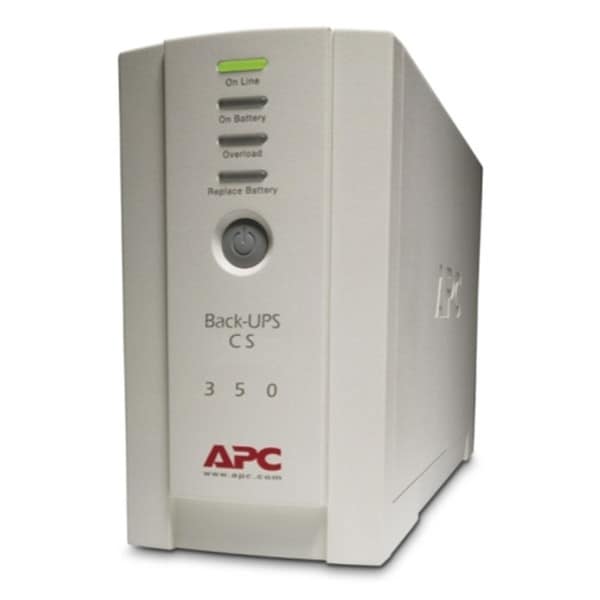

APC Back-UPS CS 350VA

Protect your electronics with this 6-outlet, 120-volt battery backup system. 210-watt back-UPS features a surge energy rating of 1,020 joules. Serial connection lets you use your PC to access additional power protection and management features for your uninterruptible power supply (UPS) through a serial port. Disconnected battery notification warns you when a battery is not available to provide backup power. Cold-start capability provides temporary battery power when the utility power is out. Dataline surge protection protects connected equipment from power surges on the data lines. Hot-swappable batteries ensure clean, uninterrupted power to your protected equipment while the batteries are being replaced. Wiring fault indicator informs you of potentially dangerous wiring problems in the wall circuit.

More from the Manufacturer

Product Type:   Standby UPS

Technical Information

Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   3 x NEMA 5-15R

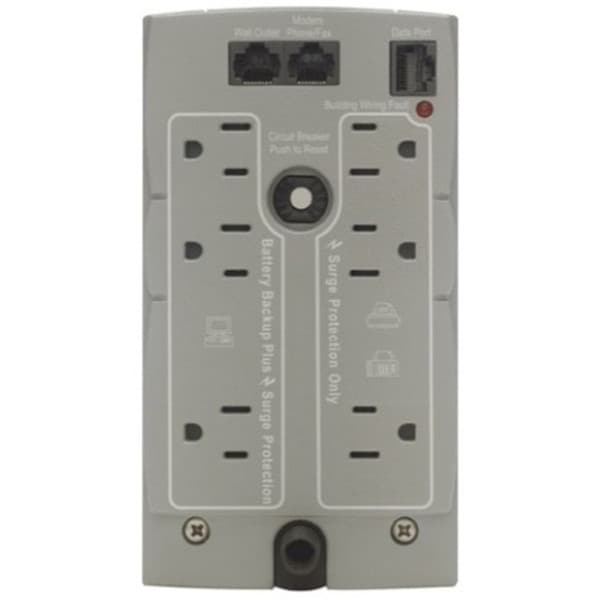

Number of Battery & Surge Outlets:   6
Dataline Protection:   RJ-11
Bypass Switch:   Not Provided
Cord Length:   6 ft

Power Description

Load Capacity:   350 VA
Input Voltage:   110 V AC
Output Voltage:   120 V AC
Power Consumption:   210 W
Waveform Type:   Stepped Sine Wave
Surge Energy Rating:   480 J

Management

Alarm:   On Battery
Alarm:   Low Battery
Alarm:   Overload
Battery Management:   Intelligent Battery Management

Controls/Indicators

Status Indicators:   LED status display with On Line, On Battery, Replace Battery, Site wiring Fault and Overload indicators

Interfaces/Ports

Serial Port:   Yes
USB:   Yes

Battery Information

Battery Characteristics:   Maintenance-free
Battery Chemistry:   Lead Acid
Backup/Run Time (Full Load):   6.60 Minute
Backup/Run Time (Half Load):   23.70 Minute
Typical Battery Recharge Time:   8 Hour

Environmental Conditions

Maximum Operating Temperature:   113°F (45°C)
Sound Emission (A-Weighted):   45 dB(A)
Thermal Dissipation:   5.86 W

Physical Characteristics

Product Color:   Beige
Height:   6.5"
Width:   3.6"
Depth:   11.2"
Form Factor:   Tower
Weight (Approximate):   12.50 lb

Miscellaneous

Package Contents:

• BK350 120V Backup System
• CD with software
• Cord management straps
• USB cable
• User manual


• Additional Information:
  • Additional Surge Protected Outlets
  • Cord Management
  • Overload Indicator
  • Software
  • Unattended Shutdown
  • USB compatible

  Certifications & Standards:
  • FCC Part 15 Class B
  • Industry Canada
  • UL 1778
  • cUL Listed


  Warranty

  Limited Warranty:   3 Year
