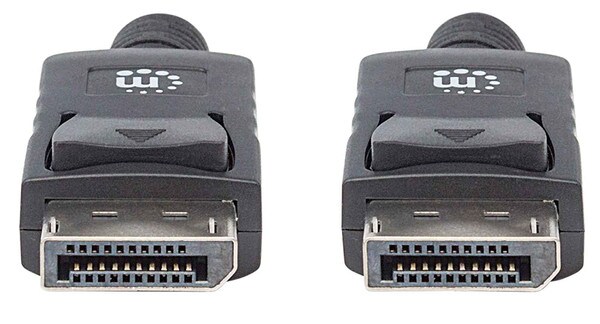

Manhattan DisplayPort Male/Male Monitor Cable

High-definition performance for personal computing.Manhattan DisplayPort Cables provide a single-cable solution that delivers both high-definition digital audio and video signals between desktop and notebook computers and an output device. With 10.8 Gbps bandwidth (1080 Mbps), Deep Color and 24-bit, 8-channel uncompressed audio capability, the 20-pin connector is small, compact and ideal for use with DisplayPort-equipped computers, flat-panel displays, slim-profile devices and many consumer electronics including Blu-ray players and game consoles. Full foil and braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections help Manhattan DisplayPort Cables provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.
Product Type:   A/V Cable

Technical Information

Cable Type:   DisplayPort
Cable Length:   6.60 ft
Connector Type on First End:   DisplayPort 1.2 Digital Audio/Video - Male
Connector on First End Details:   1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second End:   DisplayPort 1.2 Digital Audio/Video - Male
Connector on Second End Details:   1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Connector Plating:   Nickel
Connector Plating:   Gold
Features:   Booted
Features:   Molded
Features:   Strain Relief
Features:   EMI/RF Protection
Features:   Locking Latch
Conductor:   Copper
Shielding:   Yes
Device Supported:   Audio/Video Device
Device Supported:   Blu-ray Player
Device Supported:   Gaming Console
Device Supported:   Monitor
Device Supported:   Notebook
American Wire Gauge:   28 AWG
Data Transfer Rate:   10.8 Gbit/s
