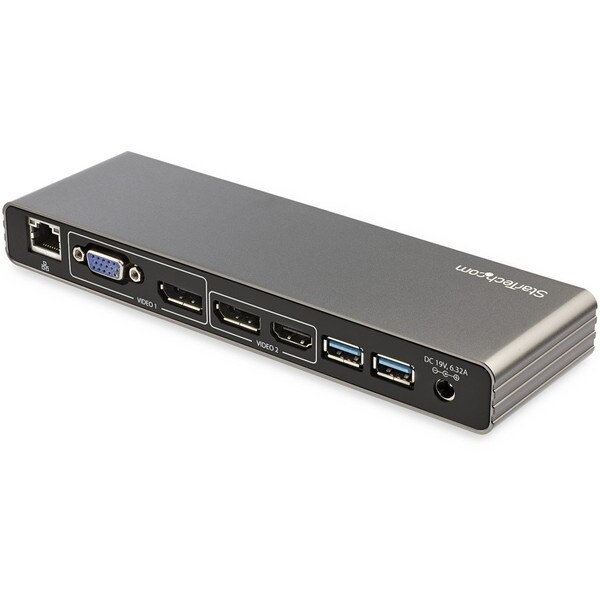

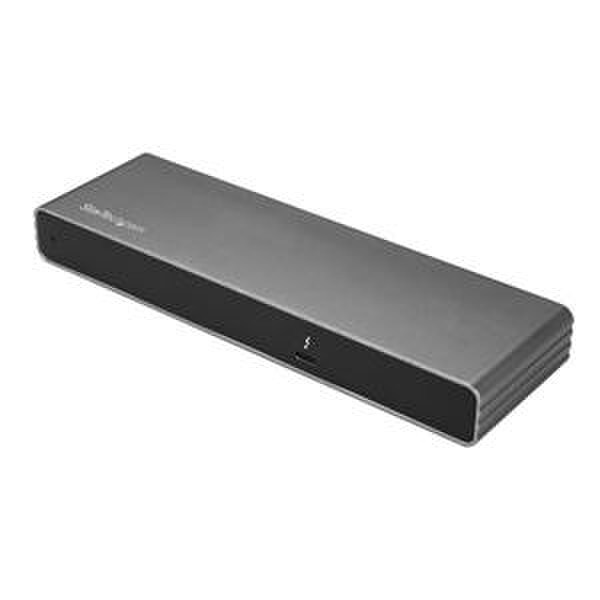

StarTech.com Thunderbolt 3 Dock

Thunderbolt 3 Dock - Mac & Windows - Dual 4K60Hz - 85W Power Delivery
Create a powerful and flexible workstation with this Thunderbolt™ 3 dock. With dedicated dual video output, you can connect your Thunderbolt 3-equipped MacBook Pro or Windows® laptop to two 4K monitors through a single Thunderbolt 3 cable.

Easy Installation & Deployment

Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.

Speed & Flexibility with 3 Monitor Options

Great for editing 4K video or other Ultra HD tasks, this Thunderbolt 3 docking station supports 40Gbps speeds and 4K resolution at 60Hz on two monitors. Enjoy ultimate flexibility in setting up your workstation, with monitor options including DisplayPort (DP), HDMI and VGA.

The dock offers many dedicated dual-video options:

2x DisplayPort (4096 x 2160p @ 60Hz)

1x DisplayPort + 1 HDMI (4096 x 2160p @ 60Hz)

1x VGA (1920 x 1200p @ 60Hz) + 1x DisplayPort (4096 x 2160p @ 60Hz)

1x VGA (1920 x 1200p @ 60Hz) + 1x HDMI (4096 x 2160p @ 60Hz)

The Ports You Need Most

Harness the reliability and speed of a wired network connection with the Gigabit Ethernet port (supporting PXE Boot and Wake-on-LAN). Connect your USB devices with two USB 3.0 Type-A ports.

Power & Charge with 85W Power Delivery

Through a single 120W power adapter, the Thunderbolt 3 docking station simultaneously powers and charges your laptop and your attached peripherals while it's docked. It provides up to 85W of charging power through Power Delivery.

The TB3DK2DHV is fully Thunderbolt 3 Certified and backed by a StarTech.com 3-year warranty and free lifetime technical support.

Packaged Quantity:   1
Product Type:   Docking Station

Technical Information

Connectivity Technology:   Wired
Device Supported:   Notebook/Desktop PC
Number of Displays Supported:   2
Screen Mode Supported:   4K
Supported Resolutions:   1920 x 1200
Supported Resolutions:   4096 x 2160

Network & Communication

Ethernet Technology:   Gigabit Ethernet

Interfaces/Ports

Host Interface:   Thunderbolt 3
Total Number of USB Ports:   2
Number of USB 3.0 Ports:   2
USB Type-A:   Yes
USB Type-C:   Yes
USB Type-C Detail:   1 x Thunderbolt™ 3 USB-C (24-pin) (40Gbps) Female
Network (RJ-45):   Yes
Number of RJ-45 Ports:   1
VGA:   Yes
Number of DisplayPort Outputs:   2
DisplayPort:   Yes
Number of HDMI Outputs:   1
HDMI:   Yes
Thunderbolt:   Yes

Software

Operating System Supported:   macOS
Operating System Supported:   Windows

Power Description

Maximum Power Supply Wattage:   85 W

Physical Characteristics

Product Color:   Gray
Height:   0.90"
Width:   2.30"
Weight (Approximate):   11.99 oz

Miscellaneous

Package Contents:

• Thunderbolt 3 Dock - Mac & Windows - Dual 4K60Hz - 85W Power Delivery
• Thunderbolt 3 Cable 1.6 ft [0.5 m]
• Universal Power Adapter
• Power Cords (NA/JP, ANZ)
• Instruction Manual

Compatibility:

• Apple MacBook Pro
• Apple MacBook 13
• Apple MacBook 16
• Apple MacBook Air
• Lenovo ThinkPad X1 Carbon
• Lenovo T Series
• Dell XPS
• Dell Latitude
• Dell Precision
• HP EliteBook

Brand Compatibility:   Dell
Brand Compatibility:   HP
Brand Compatibility:   Apple
Brand Compatibility:   Lenovo
Environmentally Friendly:   Yes
Environmental Certification:   WEEE
Environmental Certification:   REACH
Environmental Certification:   RoHS
Country of Origin:   China

Warranty

Limited Warranty:   3 Year
