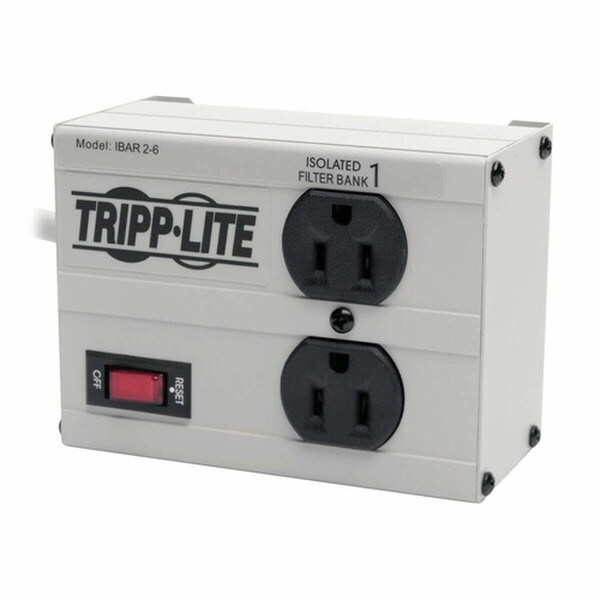

Tripp Lite Isobar 2-Outlet Surge Protector

For more than 20 years, America's leading companies have trusted Tripp Lite's Isobar Premium surge and noise suppressors to protect sensitive computer, networking and telecom equipment. With more than 18 million satisfied customers, the Isobar remains the world's #1 selling premium surge suppressor. Loaded with a generous combination of high quality components, near indestructible all-metal case and enhanced noise filtration system, Isobars offer the highest level of protection. Robust surge suppression circuits with sine-wave tracking offer extreme levels of protection against the heaviest surge conditions exceeding IEEE 587 category A & B specifications and reducing 6,000V test surges to harmless levels under 35 volts. Isobar's unique protection system combines large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into a complete surge and EMI/RFI noise reduction system. ISOBAR2-6 offers 2 outlets with network-grade surge suppression rated at 1410 joules/48,000 amps. Widely spaced NEMA 5-15 outlets accommodate up to 2 large transformer plugs. Includes 6 foot AC line cord with space-saving angled input plug and keyhole mounting tabs.

Product Type:   Surge Suppressor/Protector

Technical Information

Plug/Connector Type:   NEMA 5-15P
Receptacles:   2 x NEMA 5-15R
Protection Type:   Noise
Protection Type:   Surge

Power Description

Input Voltage:   125 V AC
Maximum Surge Current:   60 kA
Surge Energy Rating:   1410 J

Physical Characteristics

Power Cord/Cable Length:   6 ft
Height:   5"
Width:   2.5"
Depth:   3.5"
Weight (Approximate):   1.61 lb
Shipping Height:   9.40"
Shipping Width:   3"
Shipping Depth:   5.70"
Shipping Weight (Approximate):   1.90 lb

Miscellaneous

Additional Information:

• Tripp Lite's ISOBAR is the world's #1 selling premium suppressor series with more than 18 million satisfied customers and a safety-tested history of 20+ years
• Robust surge suppression with sine-wave tracking protects against the heaviest of surge conditions, exceeding IEEE category A&B specifications and reducing 6,000V test surges to harmless levels less than 35 volts
• Multi-component suppression circuits combine toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors
• Widely spaced outlets accommodate up to 2 large transformer plugs without blocking outlets
• Lighted power switch with integrated 12 amp circuit breaker offers power control and overload protection
• 6 foot AC line cord with space-saving angled input plug
• Keyhole mounting tabs allow permanent installation
• Material of construction: Metal
• EMI / RFI filtering: 40-80 dB
• UL1449 let through rating: 400V
• Receptacle Color: Black
